Place of Origin : CHINA
Brand Name : GPT
Certification : CE, TUV
Model Number : LSLF103019
MOQ : 100
Packaging Details : STANDARD EXPORT PACKING OR OEM
Delivery Time : 5~7days for samples,25~30days for order production
Payment Terms : T/T OR L/C
Supply Ability : 30000PCS PER MONTH
Quick Detail:
Description:
Applications:
Commercial Lighting,
Home Lighting,
Hotel Lighting
Specifications:
|
lamp |
10W |
20W |
30W |
|
||||
|
||||
|
Lumen(lm) |
820LMS |
1650LMS |
2400LMS |
|
Color temperature(k) |
3000K/4200K/6500K |
||
|
CRI |
>80 |
||
Performance parameter |
Type of LED |
COB LED |
||
|
Beam angle |
68º |
||
|
Decay rate(%) |
Less than 3%within 1000 working hours |
||
|
Lifespan(Hrs) |
≧30000Hrs |
||
|
High voltage testing |
1750Vac/lmin |
||
|
Lighting efficiency |
100LM/W |
||
|
||||
LED |
Chip quantity |
144PCS |
||
Parameter |
Series-parallel way |
12S12P |
||
|
voltage |
37-39VDC |
||
|
current |
850mA |
||
|
Input parameter |
100~240VAC,50/60Hz |
||
Driver parameter |
Power factor |
0.9 |
||
|
Output parameter |
24-44VDC,850MA |
||
|
Material |
Cast-Aluminium |
||
Structure |
Dimension (D x H) |
Ø90X143MM , Ø115X155MM , Ø149X180MM |
||
parameter |
Protection class |
Calss 1 |
||
|
IP |
IP20 |
||
Environment parameter |
Operating temperature |
-25℃~50℃,10%~90% R.H. |
||
Storage temperature |
-30℃~85℃,0%~95% R.H. |
Competitive Advantage:
![]() |

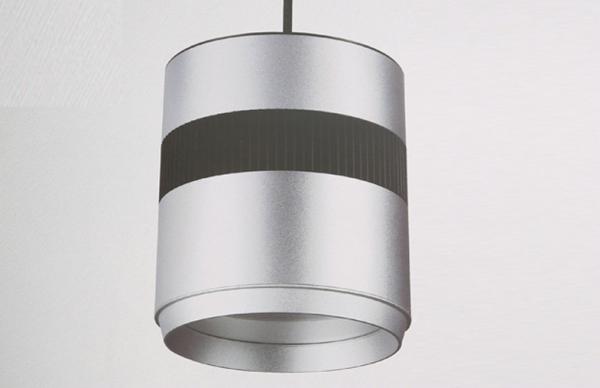

10W/20W/30W LED SUSPENDED LIGHTING FIXTURES FOR HOTEL LIGHTING Images |
