15W/20W/25W/30W LED DOWNLIGHTS LG CHIP ANTI-GLARE FOR HOTEL LIGHTING

Shining Electronic CO., LTD
Contact Now

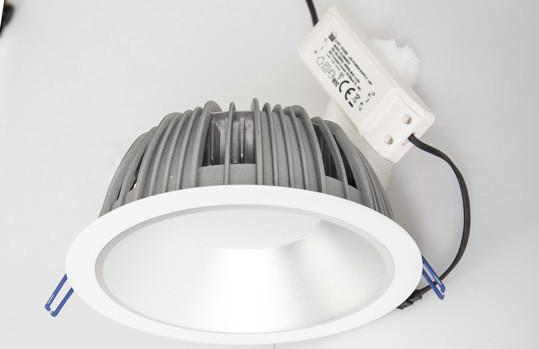

15W/20W/25W/30W LED DOWNLIGHTS LG CHIP ANTI-GLARE FOR HOTEL LIGHTING

Place of Origin : CHINA

Brand Name : GPT

Certification : CE ROHS

Model Number : LDA109001

MOQ : 2000

Packaging Details : STANDARD EX PACKING / OEM

Delivery Time : 20 DAYS

Payment Terms : T/T OR L/C

Supply Ability : 100,000 PCS/MONTH

Contact Now

Quick Detail:

  • 4 different sizes, different watts.
  • Sand reflector and mirror reflector suitable for different request on light; Aluminum body and opal diffuser plus LG chip, make the fitting is a good quality level product;
  • It’s suitable to use in store lighting and hotel lighting lobby, hotel corridor, office lighting, supermarket lighting and home lighting
  • Model Number :LDA109001

Description:

  • The LED downlights is made by aluminum body and good quality opal diffuser;
  • LG chip get a good and stable output Lumens;
  • The fitting got patent at EU and CHINA;
  • IP20 Protection
  • Constant current output with good quality LED driver;
  • The fitting is connected with the driver by a female/ male connector;
  • Instant connect save labor cost and more safety;
  • Colors:

Matt white

Dark grey

Black

  • Beam angle : 80 º
  • Color temperature: 3000K / 4000K / 5000K
  • Power: 15W /20W/25W/30W
  • Lifetime: 50000Hours

Applications:

  • This Product is in the category of "Downlights" or "LED Downlights ".
  • It can be used in following applications:

Commercial Lighting,
Home Lighting,
Hotel Lighting

Specifications:

MODEL NO.:LDA109001

WATT

COLOR TEMP.(K)

CONSTANT CURRENT

REFLECTOR

SIZE (DIAMETER X HEIGHT)

CUTT OFF

VIEW ANGLE

15W

3000/4000/5000K

DC 350mA 27V-35V

SAND / SHINY

135*70MM

120MM

80°

20W

3000/4000/5000K

DC 350mA 27V-35V

SAND / SHINY

160*75MM

140MM

80°

25W

3000/4000/5000K

DC 350mA 27V-35V

SAND / SHINY

190*95MM

170MM

80°

30W

3000/4000/5000K

DC 350mA 27V-35V

SAND / SHINY

228*100MM

210MM

80°

Competitive Advantage:

  • The LED downlights is applied with new led power, it’s a new product, the advantage compares to traditional downlights is as below :
  • ENERGY SAVING , same lumens power only 1/4 compares to traditional power;
  • LOW CARBON, exclude mercury, it’s pollution-free for the environment.
  • LONG LIFETIME, 50000hours, around 5 times than the traditional light.
  • ECONOMIC: energy saving to get lower electricity, cost return back within 2years.
  • DEEP REFLECTOR DESIGN, anti-glare diffuser, make the light very soft and not sizzling. It’s perfect to use in the store lighting.
  • WIDE BEAM ANGLE DESIGN, make the light very soft and beam angle is big enough to replace the main lighting, replace the traditional downlight well.
  • 7- QUICK CONNECT, between the fitting and the driver have a quick female/male connector, will save much labor cost.
