12Watt - 45Watt Aluminum / Glass LED Downlight , Dust-proof Commercial Lighting Downlight

Product Categories
Shining Electronic CO., LTD
Contact Now

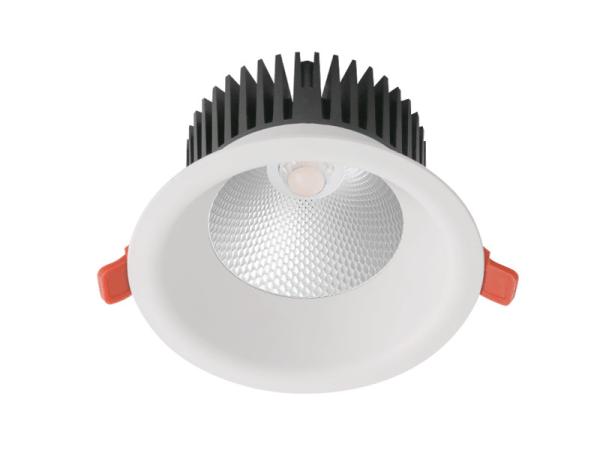

12Watt - 45Watt Aluminum / Glass LED Downlight , Dust-proof Commercial Lighting Downlight

Brand Name : SHINING

Model Number : SEC-L-DL133

Certification : CE,ROHS,SGS

Place of Origin : CHINA

MOQ : 100

Supply Ability : 10000

Packaging Details : OEM package

Material : Pure aluminum | Glass

Watt : 12W|20W|30W|40W|45W

LED chips : CITIZEN | CREE

Colors : White

Guarantee : 3years

Lifetime : 50000Hours

Contact Now

12Watt - 45Watt Aluminum / Glass LED Downlight , Dust-proof Commercial Lighting Downlight

Quick Detail:

  • Aluminum housing with small volume and rapid heat dissipation
  • IP20
  • Input voltage: 85-265V
  • Dimmable driver | Non-dimmable driver for choices
  • LED chips : CITIZEN | CREE for choices
  • Color temperature : 3000K | 4000K | 5000K | 6000K
  • Power: 12W/20W/30W/40W/45W
  • Lifetime : 50000Hours
  • RA>80
  • Fatioixn : Recessed
  • Guarantee : 3years

Description:

  • Aluminum housing with small volume and rapid heat dissipation
  • IP20
  • Input voltage: 85-265V
  • Dimmable driver | Non-dimmable driver for choices
  • LED chips : CITIZEN | CREE for choices
  • Color temperature : 3000K | 4000K | 5000K | 6000K
  • Power: 12W/20W/30W/40W/45W
  • Lifetime : 50000Hours
  • RA>80
  • Fixation : Recessed
  • Guarantee : 3years

PATENT DESIGN:

BIG LENS FOR THE LED CHIP :

THE SMOOTH SPRING :

PERFECT DESIGN ON THE SHAPE OF COVER:

Applications:

  • This Product is in the category of "Downlights" or "LED Downlights ".
  • It can be used in following applications:

Commercial Lighting,
Office Lighting,
Hotel Lighting

Specification:

Model Power (W) Luminous Flux (lm) Color Temperature (K) CRI Beam angle (°) LED chip Dimension (mm) Cut out (mm)
SEC-L-DL133 12 960 3000|4500|6000 85 15|24|40 COB 125*110 105
SEC-L-DL133 20 1600 3000|4500|6000 85 15|24|40 COB 140*120 120
SEC-L-DL133 30 2400 3000|4500|6000 85 15|24|40 COB 160*125 140
SEC-L-DL133 40 3200 3000|4500|6000 85 15|24|40 COB 195*125 165
SEC-L-DL133 45 3600 3000|4500|6000 85 15|24|40 COB 195*125 165

Competitive Advantage:

  • 1. Low power consumption
  • 2. Long lifespan
  • 3. Easilly installed
  • 4. Dust-proof
  • 5. Anti-creeping
  • 6. Widely used at supermarket,hotel,hospital,meeting room,show room,artistic room,museum,exhibition gallery and other lighitng area
